Design
TVS really put much effort to make the scooter look fabulous in all angles and design aspects of this scooter can be matched with the likes of the international scooters. The making is much different from its sibling Jupiter in all angles and the new edition comes with additional features like Silver Oak panels, chrome-finish handle dampeners and USB mobile charger to make more appeal.
Windshield
A stylish retro-style inspired windshield is provided in this scooter and this makes it stand out from the conventional design followed by the scooter clans in India. TVS has succeeded in giving this scooter a fresh look.
Besides the windshields, the scooter showcase a stylish chrome plated mirrors and have an elegant headlamp that gives a premium retro look to this beautiful scooter.

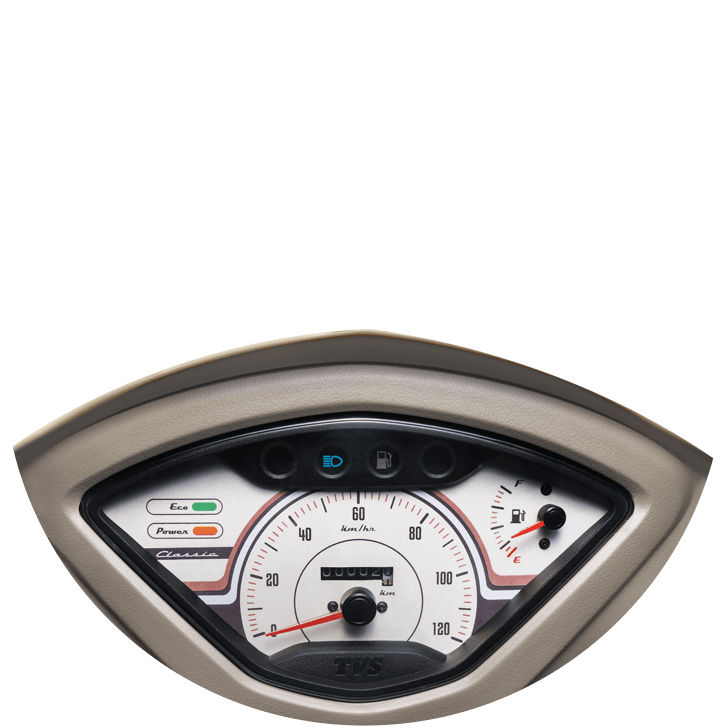

A Classic Speedometer
The new Jupiter Classic holds a cool speedometer that suits the entire design aspects. The instrument cluster is analogue and shows multicolour details of various functions with good visibility at the top.
The fuel gauge indication is positioned at the top right end while the riding mode is at the top left with the "Classic" logo engraved in italics. The centre portion covers the speedometer, while bottom portions hold the TVS logo and complete the design of the entire dashboard.
Classic Dual Tone Seat
A Premium dual tone seat with neat stitching is provided in this scooter. This wide seat makes sure that riding with the Jupiter classic will be comfortable. The wide seat is also ideal for any member to use the scooter with much ease. This scooter also has an impressive seat height which makes it easy to ride along cities and traffic swiftly.

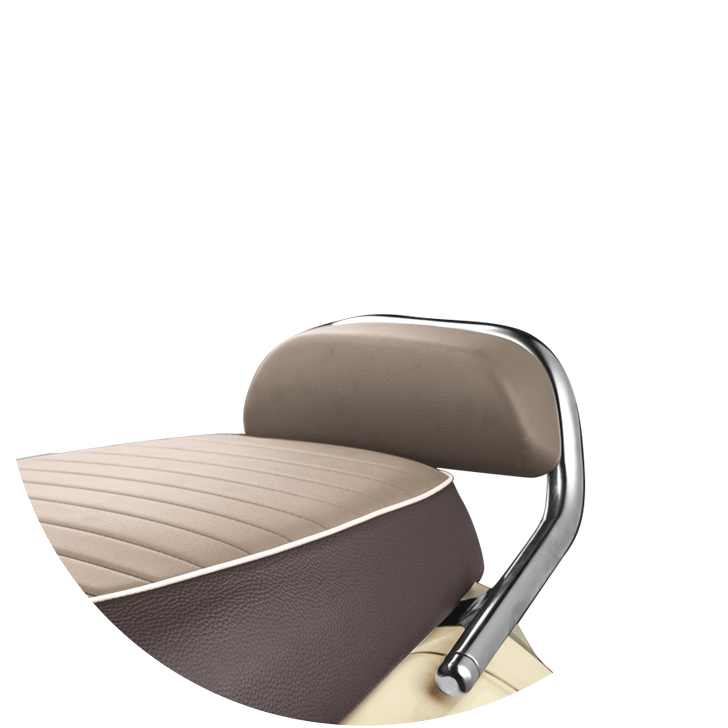

Pillion Handle With Cushion
TVS has given design and features a very much importance with the making of the Jupiter Classic. This is evident by the adoption of a cushioned pillion handle with back support.
The pillion back rest will give more comfort to the pillion rider and this makes travelling more safe and secure at all times.
Engine
TVS has made changes to the design aspects of Jupiter Classic while the mechanical section remains untouched. The new Jupiter retains the same 110 cc engine used by the predecessor which produces 8 bhp @ 7500 rpm and 8.4 Nm of torque @ 5500 rpm. The scooter uses Digital IDI with ignition Map Technology for ignition and sits on a High Rigidity Underbone Type chassis. However, TVS could have made some changes to the engine side as the untouched engine can be a slight turn off for the prospective buyers.

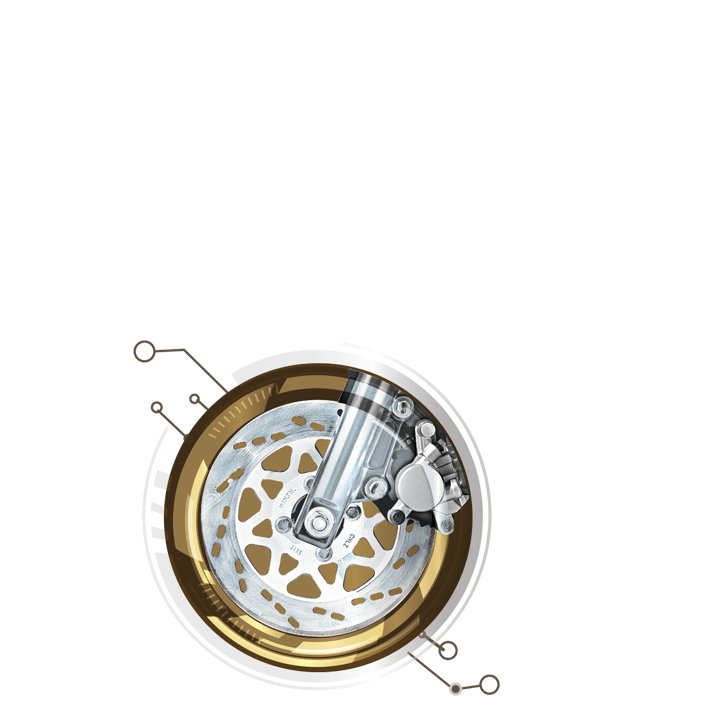

Braking and Suspension
Advanced Telescopic Suspension is employed at the Front of the Jupiter while a Gas Charged Monoshock suspension is used at the rear. This suspension setup is seen in almost all scooter line up and is proven to be good for high speeds and also for almost all terrains.
Braking of the Jupiter is done with 130 mm Drum Brake at the rear and disc brakes come as standard equipment at the front part. The disc brakes combined with the suspension makes sure that the Jupiter will have effective breaking while encountering the traffic and will be stable and comfortable to ride in and around the city.
Full Technical Specifications of TVS Jupiter Classic
| Engine | 109.7 CC 4 Stroke, Single Cylinder, Air Cooled, OH |
| Maximum Power | 5.88 kw (8 bhp) @ 7500 rpm |
| Maximum Torque | 8.4 Nm @ 5500 rmp |
| Ignition | Digital IDI with Ignition Map Technology |
| Battery | 12V, 5 Ah Flooded |
| Head Lamp | 12V, 35/35W Halogen (Multi-reflector Type) |
| Brake Lamp / Tail Lamp | 12V, 2W/1.5W LED |
| Turn Signal Lamp | 12V - 10W (Amber Bulb) x 4 Nos. (Multi-reflector Clear Lens) |
| Frame | High Rigidity Underbone Type |
| Dimensions (l x b x h) | 1834 x 650 x 1115 mm |
| Wheelbase | 1275 mm |
| Saddle Height | 765 mm |
| Ground Clearance | 150 mm |
| Tyre Size (Front) | 90/90-12,Tubeless |
| Tyre Size (Rear) | 90/90-12,Tubeless |
| Front | 130 mm Drum Brake |
| Rear | 130 mm Drum Brake |
| Front | Ø30 Advance Telescopic Suspension |
| Rear | Gas Charged Mono Shock |
| Tank Capacity | 5.0 litre |
Price
TVS has priced the new Jupiter Classic Edition at Rs. 55,266 (ex-showroom, Delhi).
